First Steps in OpenMP

Shared Memory Programming

Shared memory programming is widely deployed in scientific computing due to the prevalence of multicore processors and multithreaded processing cores.

Historical Context

Shared memory hardware was very expensive 20 years ago
Inexpensive these days
Contemporary laptops have between 2 and 8 cores

Programming Options

There are several ways to program shared memory systems:

Posix threads (typically C, C++)
OpenMP (C, C++, Fortran)
Threaded languages (e.g., Java)

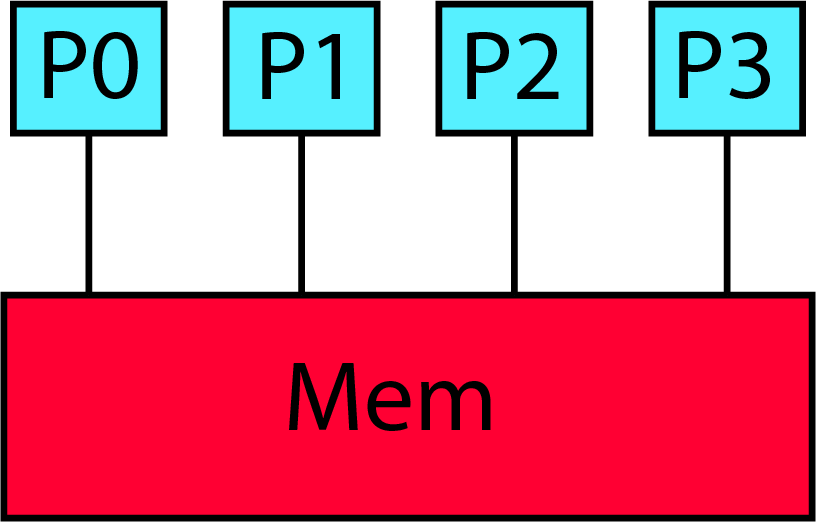

Shared Memory Architecture

In shared memory architecture, threads placed on several processing elements manipulate the same shared memory space.

Advantages:

Easy to move data between threads
Write result to shared memory on one processor
Read on a different processor

Considerations:

Care is needed regarding order (e.g., P0 needs to write before P2 can read)
Read/write to shared memory has typically higher cost than manipulating registers/cache
This creates communication overhead

OpenMP Resources

Official Resources

OpenMP is trademarked by the OpenMP ARB (a not-for-profit corporation)
Website: http://openmp.org
Standard specifications (free): http://www.openmp.org/specifications/

Free Tutorials

YouTube playlist: https://www.youtube.com/playlist?list=PLLX-Q6B8xqZ8n8bwjGdzBJ25X2utwnoEG
LLNL tutorial: https://computing.llnl.gov/tutorials/openMP/

Textbooks

Using OpenMP (OpenMP 2.5)

Authors:

B Chapman, G Jost, R van der Pas

Publisher:

MIT Press, Cambridge, Massachusetts, 2008
Using OpenMP – The next Step (OpenMP 4.5)

Authors:

R van der Pas, E Stolzer, C Terboven

Publisher:

MIT Press, Cambridge, Massachusetts, 2017

Threads in OpenMP

Execution Model

Program execution follows a fork-join model:

Start: Program execution starts single-threaded (master thread)
Fork: When entering a parallel region, a team of threads is created
Parallel work: Each thread executes an independent instruction stream
Join: At the end of parallel region, threads join and synchronization occurs
Continue: Single thread continues execution

Different parallel regions can have different numbers of threads.

OpenMP: Directive Based

OpenMP is based on compiler directives that control parallel execution.

In Fortran: Directives are special comments
In C/C++: Directives are #pragma statements
Directives are ignored by compilers without OpenMP support or when OpenMP is not enabled
This makes it easy to maintain a single source version for both serial and parallel execution
OpenMP also facilitates conditional compilation

OpenMP Directives in Fortran

Free Format

!$omp directive_name [clause […]]

Fixed Format

Directives always start in column 1:

!$omp directive_name [clause […]]
c$omp directive_name [clause […]]
*$omp directive_name [clause […]]

The first piece (e.g., !$omp) is called the sentinel.

Line Continuation

Free format example:

!$omp parallel do &
!$omp shared(a,b)

Fixed format example:

c$omp parallel do
c$ompa shared(a,b)
c$ompb schedule(dynamic)

Note

A non-blank character in column 6 marks a continuation line.

OpenMP Directives in C/C++

#pragma omp directive_name [clause […]]

Line Continuation

Use backslash \ for line continuation.

Directive name: Specifies the action
Clause(s): Allow further specification

Library Functions

In addition to directives, OpenMP offers library functions mainly to control the operating environment.

Including Headers

In C:

#include <omp.h>

In Fortran:

include "omp_lib.h"

or

use omp_lib

Conditional Compilation

OpenMP compilers define the preprocessor macro _OPENMP.

C Example

#ifdef _OPENMP
#include <omp.h>
#endif

Fortran Example

Lines starting with !$ (free format) or !$, *$, c$ (fixed format) are only compiled if OpenMP is active:

!$ use omp_lib

Note

This guard is required if code needs to be compiled serially.

The `parallel` Construct in Fortran

The most important construct in OpenMP.

!$omp parallel
    structured block of Fortran
!$omp end parallel

Starts a team of threads working on the block between the directives
At the end of the parallel region, there’s an implicit synchronization (wait for the last thread)

First Example

program example
    implicit none

    print *, "3+5=", 3+5

    !$omp parallel
    print *, "6+7=", 6+7
    !$omp end parallel

end program example

Execution:

First portion executed on master thread (prints “3+5=” once)
Parallel construct creates threads
Each thread performs addition and prints “6+7=”
Code also compiles serially (without OpenMP)

The `parallel` Construct in C

#pragma omp parallel
{
    structured block of C instructions
}

Starts a team of threads working on the block enclosed with { } in parallel
At the end of the parallel region, there’s an implicit synchronization (wait for the last thread)

First Example

int main()
{
    printf("3+5=%i\n", 3+5);

    #pragma omp parallel
    {
        printf("6+7=%i\n", 6+7);
    }

    return 0;
}

Execution:

First portion executed on master thread (prints “3+5=” once)
Parallel construct creates threads
Each thread performs addition and prints “6+7=”

Controlling the Number of Threads

The number of threads started by a parallel construct can be controlled in several ways (listed by increasing priority):

Environment Variable

export OMP_NUM_THREADS=n

Function Call

omp_set_num_threads(n);

Clause on Parallel Construct (Highest Priority)

Fortran:

!$omp parallel num_threads(n)

C:

#pragma omp parallel num_threads(n)

Thread Number and Thread ID query Functions

These functions require header files to be included.

Query number of threads:

omp_get_num_threads()

Query thread ID:

omp_get_thread_num()

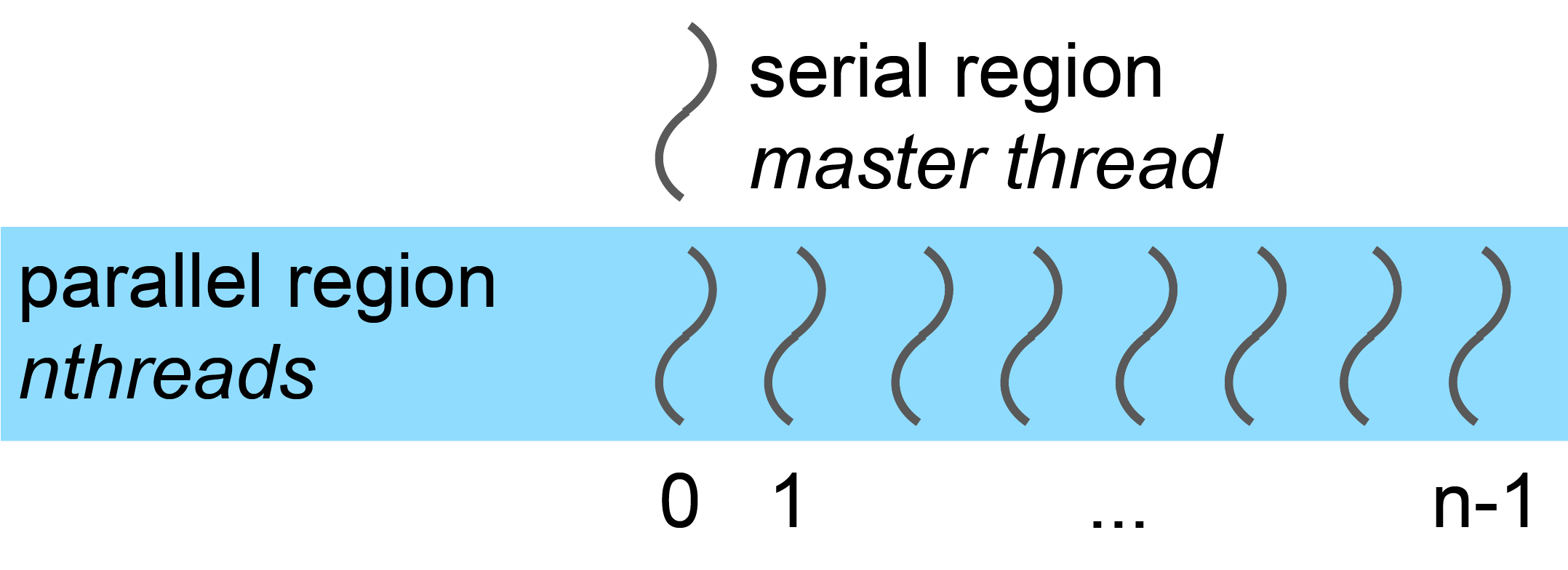

Thread Numbering

In a parallel region with n threads, thread IDs range from 0 to n-1.

Example: Printing Thread Numbers

Fortran Version

program FortranHello
    !$ use omp_lib
    implicit none

    !$omp parallel
    print *, "I am thread", omp_get_thread_num(), &
             " out of ", omp_get_num_threads()
    !$omp end parallel

end program FortranHello

Sample Output (8 threads)

I am thread 0 out of 8
I am thread 3 out of 8
I am thread 4 out of 8
I am thread 2 out of 8
I am thread 1 out of 8
I am thread 7 out of 8
I am thread 6 out of 8
I am thread 5 out of 8

Note

Each thread prints its thread number and total number of threads. The order is non-deterministic.

C Version

#include <stdio.h>
#include <omp.h>

int main()
{
    #pragma omp parallel
    {
        printf("I am thread %i of %i\n",
               omp_get_thread_num(),
               omp_get_num_threads());
    }

    return 0;
}

Use Case: Task Farm Using Thread Numbers

You have three serial programs and want to run them on different threads.

Convert the programs into functions/subroutines.

Fortran Implementation

Program Prog2
    ! statements
End Program Prog2

subroutine sub2()
    ! statements
End subroutine sub2

New main program:

Program farm
    use omp_lib

    call omp_set_num_threads(3)

    !$OMP parallel
    if (omp_get_thread_num() .eq. 0) call sub0()
    if (omp_get_thread_num() .eq. 1) call sub1()
    if (omp_get_thread_num() .eq. 2) call sub2()
    !$OMP end parallel

End program farm

C Implementation

int main()
{
    // statements
}

int funct2()
{
    // statements
}

New main function:

int main()
{
    omp_set_num_threads(3);

    #pragma omp parallel
    {
        if (omp_get_thread_num() == 0) funct0();
        if (omp_get_thread_num() == 1) funct1();
        if (omp_get_thread_num() == 2) funct2();
    }

    return 0;
}

Timing OpenMP Code

Parallel programming is all about speed, so timing is essential.

Timer Function: omp_get_wtime()

Returns elapsed wall-clock time in seconds
Returns double in C, double precision in Fortran
Accuracy can be queried with omp_get_wtick()

Warning

Timer is bound to thread!

Fortran Example

double precision :: stime, ftime

stime = omp_get_wtime()

! code segment to be timed

ftime = omp_get_wtime()
print *, "time: ", ftime - stime

C Example

double stime = omp_get_wtime();

// code segments to be timed

double ftime = omp_get_wtime() - stime;
printf("time: %f\n", ftime);

Compiling OpenMP Code

Most modern compilers support OpenMP. Simply add a compiler flag to enable OpenMP.

Compiler Flags

Compiler	Flag	Standard Implemented (_OPENMP)
GNU	`-fopenmp`
	version 4.8.5	OpenMP 3.1
	version 4.9.3	OpenMP 4.0
	version 5.4.0	OpenMP 4.0
	version 6.2.0	OpenMP 4.5
Intel	`-openmp` (old)
	`-qopenmp`
	version 16.0.1	OpenMP 4.0
	version 16.0.3	OpenMP 4.0
	version 17.0	OpenMP 4.5

Example with GCC

gfortran -O3 -fopenmp -o prog_omp prog_omp.f90

Note

Some features of newer standards may be available depending on compiler version.

Summary

This guide introduced the following OpenMP concepts:

Teams of threads in OpenMP and the fork-join execution model
Controlling and querying basic properties of threads
- Number of threads
- Thread number/ID
Timing parallel code with omp_get_wtime()
Compiler flags for enabling OpenMP support
