File systems

This section will be a basic overview of the Linux filesystem concepts, not an in-depth description of filesystem types. When we come to the “Introduction to Linux” session, we will look more at commands to navigate and modify the filesystem.

Note

A file system is a hierarchical structure of directories/folders used by the operating system to manage, organize, store, and retrieve data from storage devices (SSG, HDD, USB, …)

It is an interface between applications and hardware.

Windows, macOS, Linux/Unix, etc. all use file systems. Often they are “hidden” to the user when using a graphical interface, especially as files are commonly found by searching. Many applications save to specific directories and remember where files were last placed, and so can quickly offer the correct file to the user.

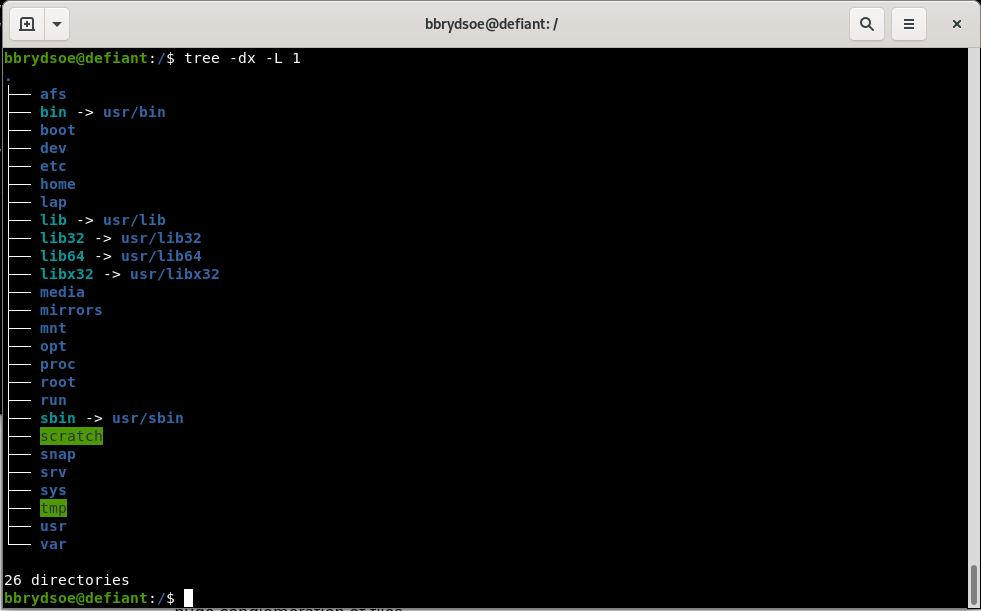

Tree of dir structure

The Linux filesystem directory structure starts with the top root directory, which is shown as /. Below this are several other standard directories. Of particular interest are usr/bin, home, usr/lib, and usr/lib64. A common directory which you will also often find is usr/local/bin.

The picture on the above right shows typical subdirectories under / (note that the command tree does not work at all HPC centers, though it does work on Tetralith—see the page tree under the “Extras” section for how to install if it is missing). Some of the directories have a symbolic link to a different name—this is often done to make it quicker to write, but can also be for compatibility reasons since some software have hardcoded paths.

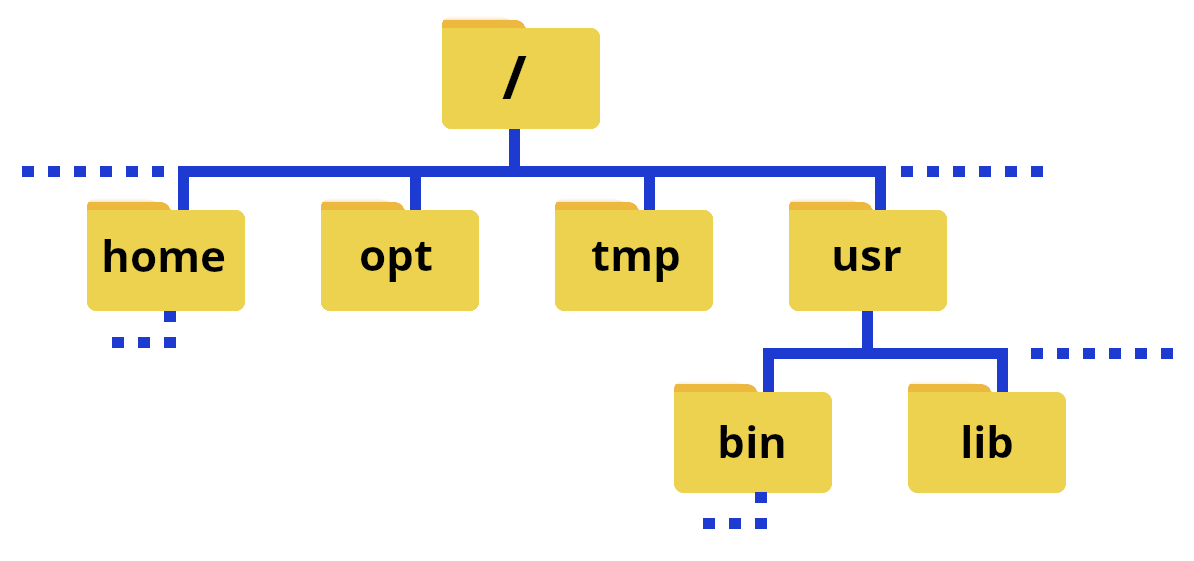

Shown with folders, part of it could look like this:

Folders of the file system, Linux

Note

The path or pathname is the representation of the location of a file or folder/directory on a computer file system.

  • / is the root of the directory structure on a Linux filesystem
  • /usr/bin contains (most) of the system-specific binaries
  • /usr/local/bin holds non-system binaries. often locally compiled/maintained packages
  • /home is where the home directories of the users of the system are located
  • /usr/lib holds kernel modules and shared library images needed to boot the system and run commands in the root filesystem
  • /usr/lib64 is the same as /usr/lib, just for 64-bit libraries

User installed binaries are often located in /opt.

Note about /

The character / can be

  1. the root directory, if it appears alone or at the front of a file or directory name
  2. a separator if it appears in other positions within the path.

Note

If you are on a local cluster, on an HPC center, etc. where you are not root, you will be in your home directory by default when you login. You can use cd .. a couple times to go to the root of the system and do tree there if you want, or do tree in your home directory (you can always return there with just cd).

Caution

Running tree in / on a supercomputing center will probably give a very large/long output!

Your home directory

When you login to the computer (as a non root user), you will end up in your home directory. At most HPC centers, your home directory will appear as ~ in the terminal prompt, and can also be used in commands instead of having to type out /home/YOUR_USERNAME.

The path to your home directory varies somewhat. Here are some examples for me:

  • Kebnekaise: /home/b/bbrydsoe
  • My laptop, ncc-1701: /home/bbrydsoe
  • My home desktop, defiant: /home/bbrydsoe

We will look more at file systems and how to navigate them in the session “Introduction to Linux”.
